PATRIOT

PATRIOT is the leading cost-effective solution for 6 Degree-Of-Freedom tracking and 3D digitizing. It's an expandable system that can accommodate up to two sensors, making it perfect for a wide array of applications. From head tracking, bio-mechanical analysis and computer graphics to cursor control and stereotaxic localization, PATRIOT delivers a sweet spot combination of performance and value.

Expandable, Versatile and Easy to Use

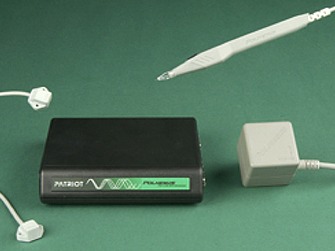

PATRIOT includes a system electronics unit (SEU), a power supply, one sensor and one source. You can expand the system’s capabilities simply by adding an additional sensor or an optional stylus. Measuring in at only 6.75 by 6.25 by 1.75 inches (LWH), the electronics unit is compact for easy installation in any environment. PATRIOT interfaces with the host computer via RS-232 or USB 1.1. It's fully compatible with Windows® XP, Windows 2000 and Linux®.

PATRIOT's intuitive PiMgr graphical user interface makes it easy to use.

PATRIOT utilizes AC tracking technology, which has been perfected through multiple generations to deliver the industry's highest level of performance and reliability. The source and sensor contain electromagnetic coils enclosed in plastic shells. The source emits magnetic fields, which are detected by the sensor. The sensor’s position and orientation are precisely measured as it is moved. Because the sensor is completely passive, it's safe for use in any application.

PATRIOT provides dynamic, real-time measurements of position (X, Y and Z Cartesian coordinates) and orientation (azimuth, elevation and roll). PATRIOT can update data continuously, discretely (point by point), or incrementally. With the optional stylus, you can trace the outline of a physical object or collect polygon facets and get pinpoint accuracy of unlimited X, Y and Z data points.

PATRIOT is designed for unrivaled ease of use. Within a few minutes after unpacking the box, you'll have the system up and running. Data can readily be output to third-party applications for custom functionality to meet virtually any need. The system is factory calibrated and never requires adjustment.

Low Latency, High Stability

PATRIOT is designed to deliver reliability in demanding real world applications. It offers low latency and high stability to ensure precise, uninterrupted tracking at all times. PATRIOT boasts an update rate of 60Hz per sensor. It has a range of five feet, resolution of 0.0015 inch and 0.1 degree, and static accuracy of 0.1 inch RMS for the X, Y, Z position and .75 degrees RMS for orientation. Latency is less than 18 milliseconds for both sensors simultaneously.

Quiet and stable, the system is essentially unaffected by facility power grid fluctuations. Update rates are always maintained, because AC magnetics offer superior signal to noise ratios. Sophisticated digital signal processing helps provide optimal signal. In addition, adaptive filtering is available as a standard feature.

Advanced AC Technology

Unlike products based on pulsed DC technology, the PATRIOT is not negatively affected by the earth's magnetic field, power outlets or electric motors. Because AC tracking is also more accurate and faster, it's clearly the superior choice.

PATRIOT's advanced AC magnetic technology provides optimal signal-to-noise ratios. There is no need to worry about maintaining a clear line-of-sight between the receiver and transmitter. Unlike sonic or laser devices, PATRIOT is not affected by signal blocking and interference.

Specifications:

Degrees-of-Freedom: 6DOF
Number of Sensors: 1-2
Update Rate: 60Hz per sensor
Static Accuracy Position: 0.1in RMS
Static Accuracy Orientation: .75 ° RMS
Latency: 17ms
Resolution Position at 30cm range: 0.00015in, 0.0038cm
Resolution Orientation: 0.01°
Range from Standard TX2 Source: Up to 5 ft. or 1.52 m
Extended Range Source  n/a
Interface: RS-232 or USB - Both Included
Host OS compatability: GUI/SDK 2000/XP

The PATRIOT includes the following:

1 Electronics Unit
1 Sensor with 10 ft. or 20 ft. Cable
1 Transmitter with 10 ft. or 20 ft. Cable
1 Installation & Operation Guide
Two Year Warranty
